Fittings and cable for hanging screens

• Let the hanging screen blend seamlessly in to your office or work environment
• Features a self-locking mechanism that makes installing super easy and quick. A clutch release button on the gripper means it can be easily levelled up.
• Each one comes with 1m of cable, giving height adjustment. The fitting secured to the panel can be used to shorten this easily to whichever desired height.

Fitting Instructions

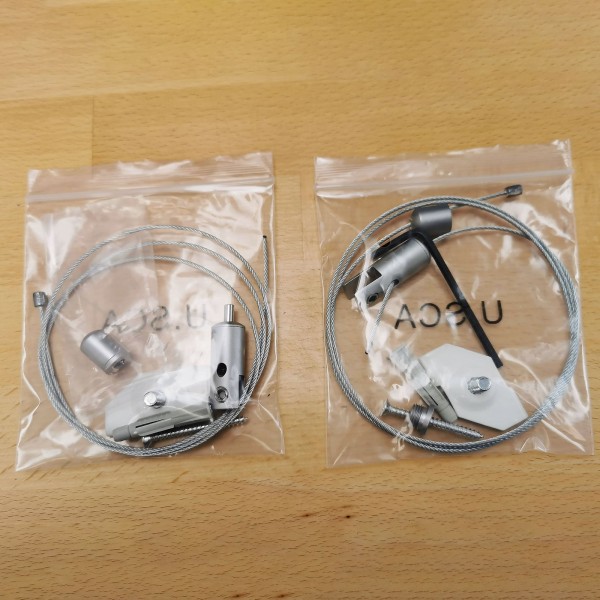

• A pair of hanging kits are included with each screen (one for each end)

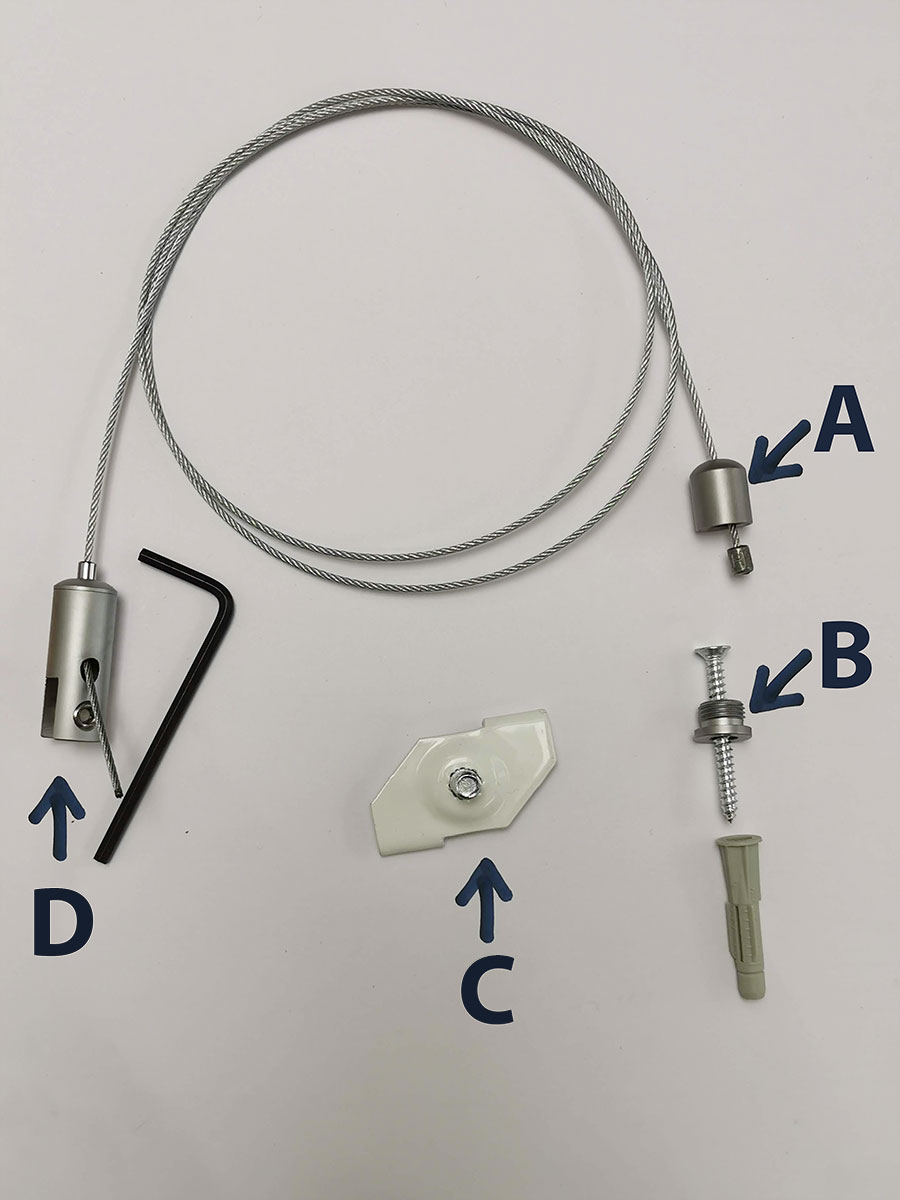

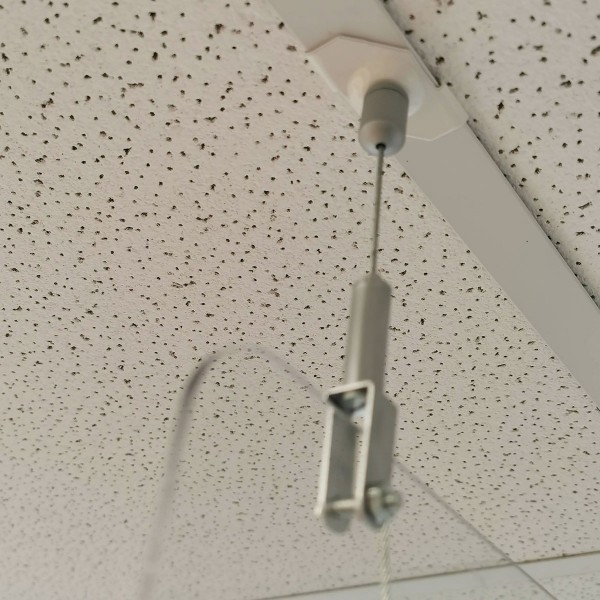

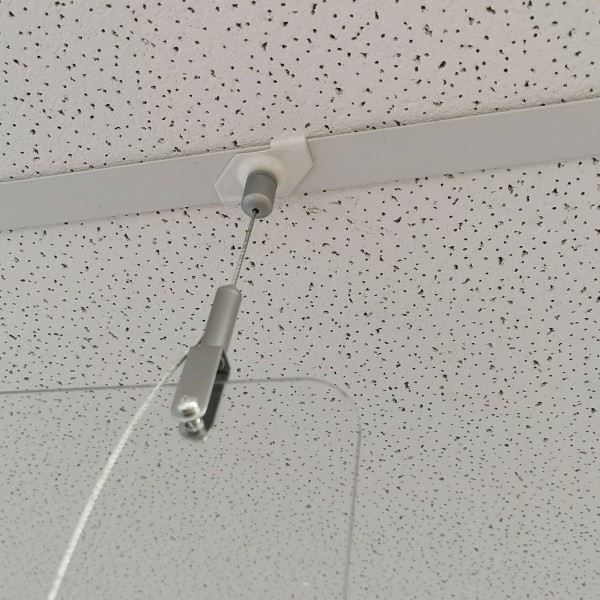

• For fixing to suspended ceilings: screw part A into part B and then Part B onto Part C. Part C simply twist-locks onto the grid between the ceiling tiles. In this case the screw and rawlplug will not be required.

• For fixing to other ceiling types: use the screw and rawlplug to attach Part B to the ceiling. Screw Part A onto Part B. In this case Part C will not be required.

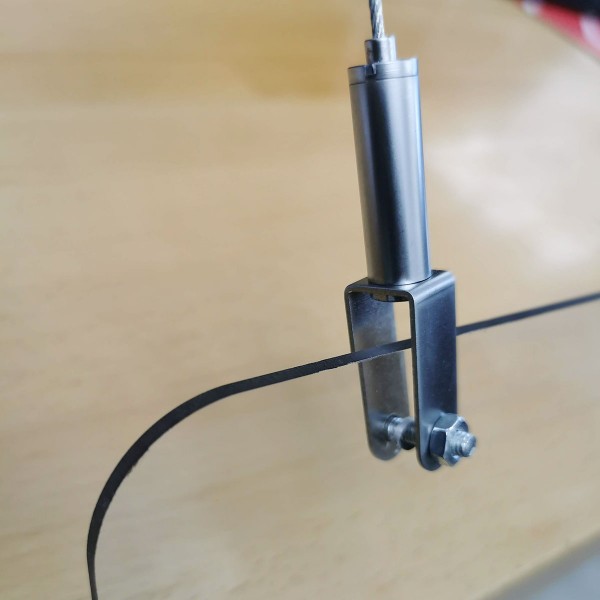

• Part D attaches to the top of the polycarbonate screen. Some versions use an allen key & some a nut and bolt. We reserve the right to change the version supplied.
• The wire pushes through Part D as shown. It is spring loaded and will only allow the wire to be retracted by pressing the top collar.
• If desired – once you have determined the ideal length for the hangers you can snip off the excess wire with a pair of sharp pliers or wire cutters.
